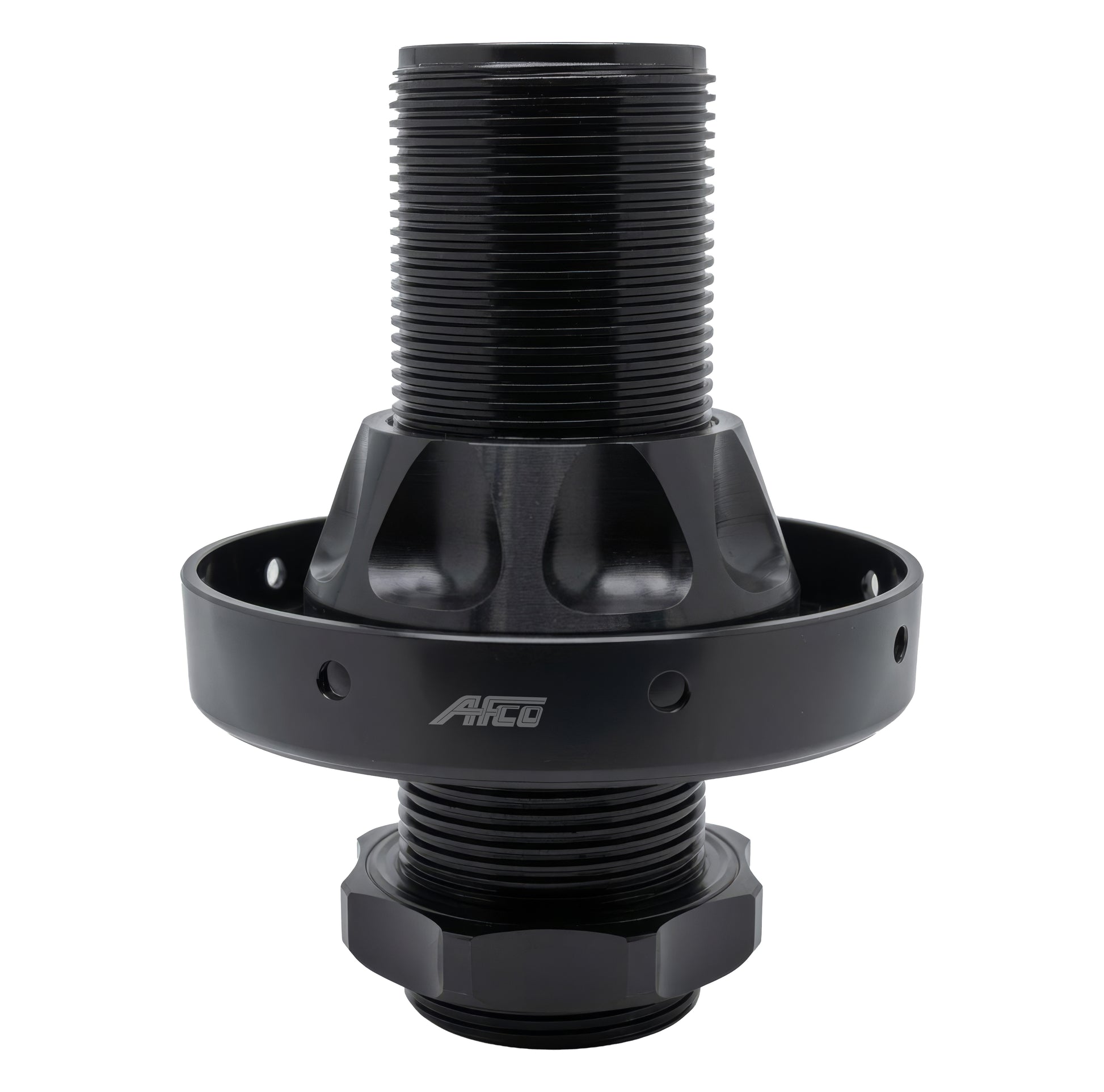

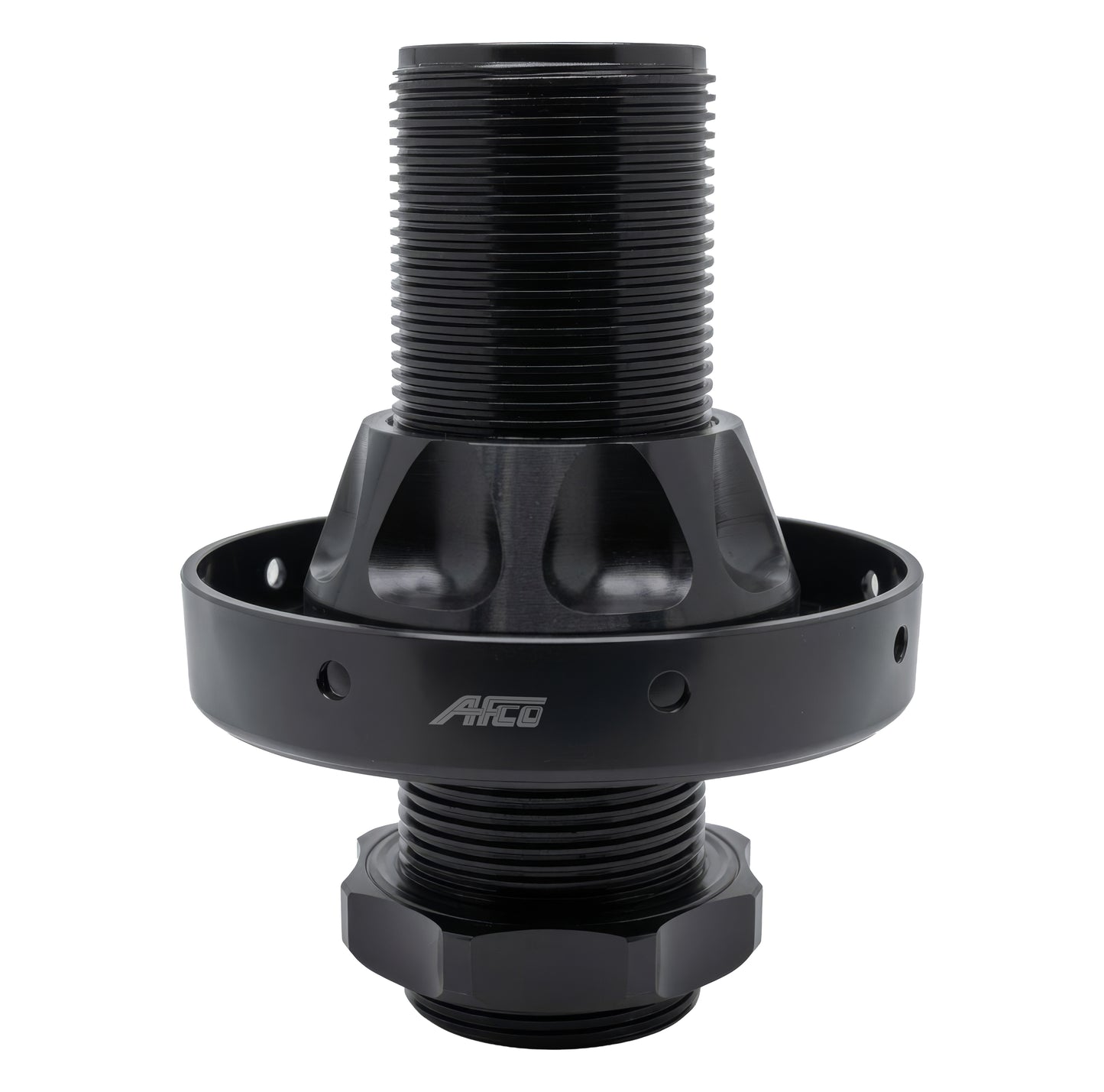

Steel Body Shock Coil-Over Kits

• 5” O.D. grip cups to help eliminate spring bow.
• Sleeve design to lock in the body snap ring on steel body shocks.
• Locking adjuster collar to keep coil-over nut locked in place.
• Lightweight cups help reduce unsprung weight while minimizing debris buildup.
• 1-piece cup to help lock everything in place.

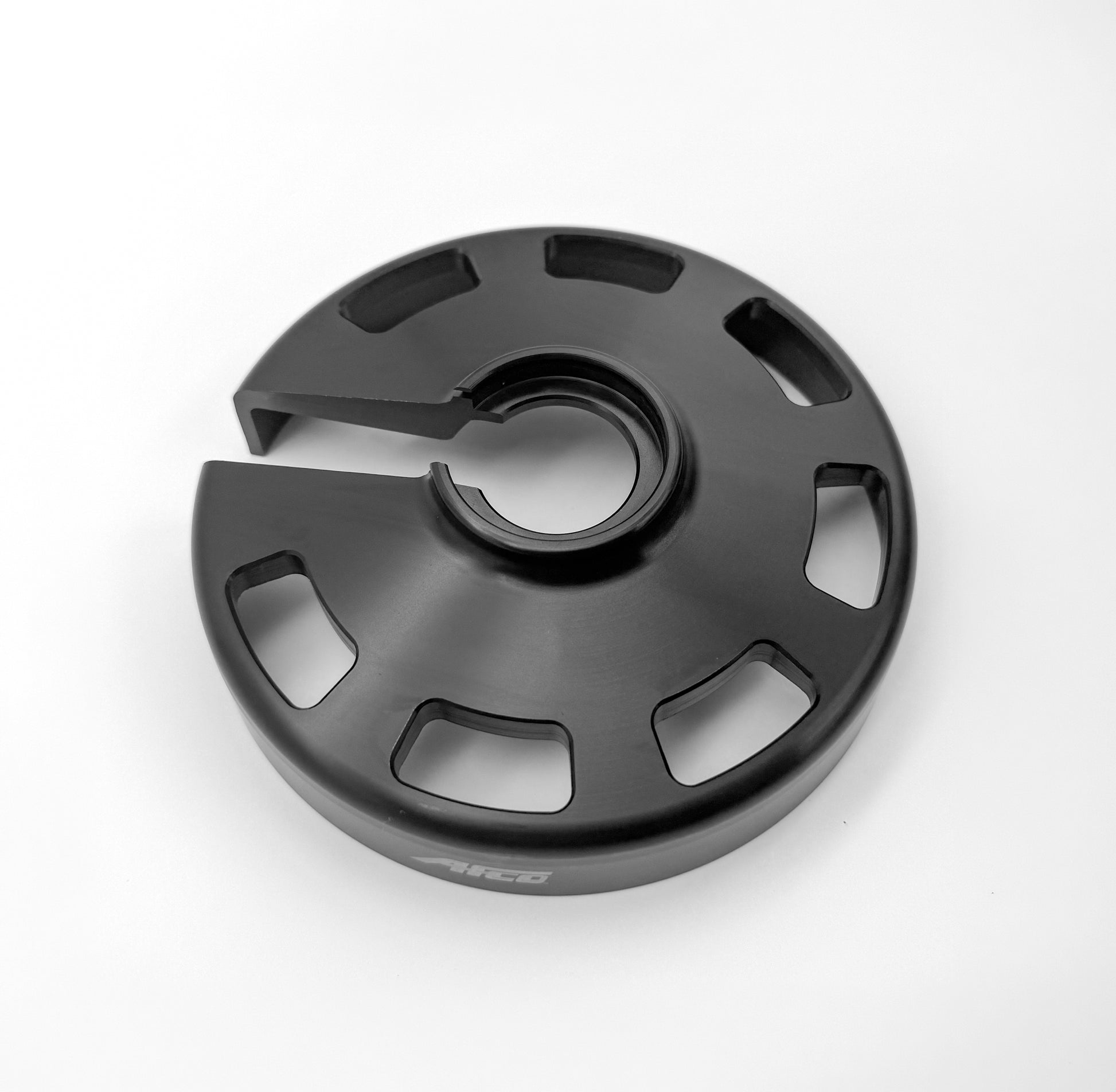

SIMPLIFIED ONE-PIECE SPRING SEAT

Streamlined Design - The spring seat is now a single component. Older versions required two separate pieces to be held together.

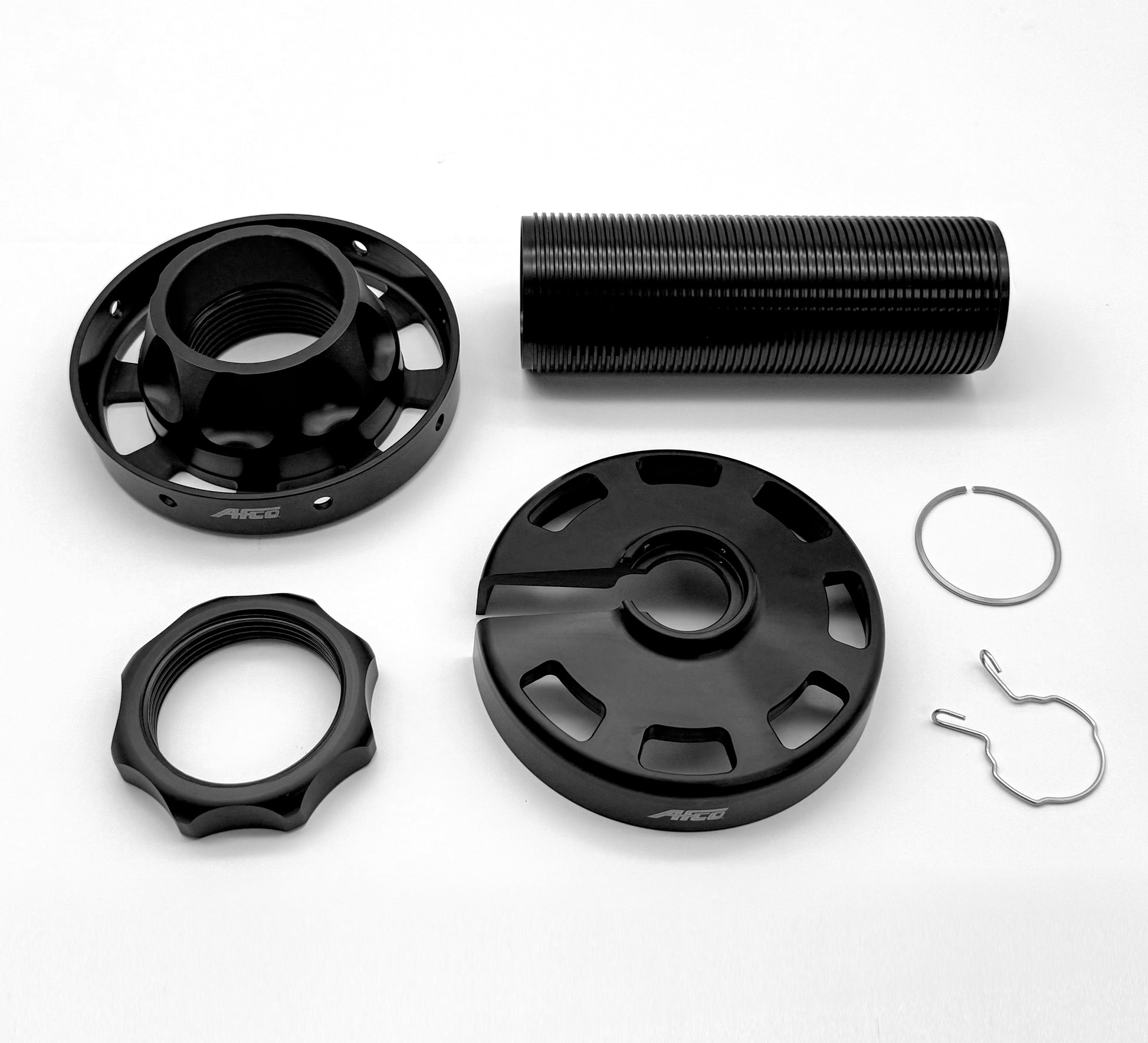

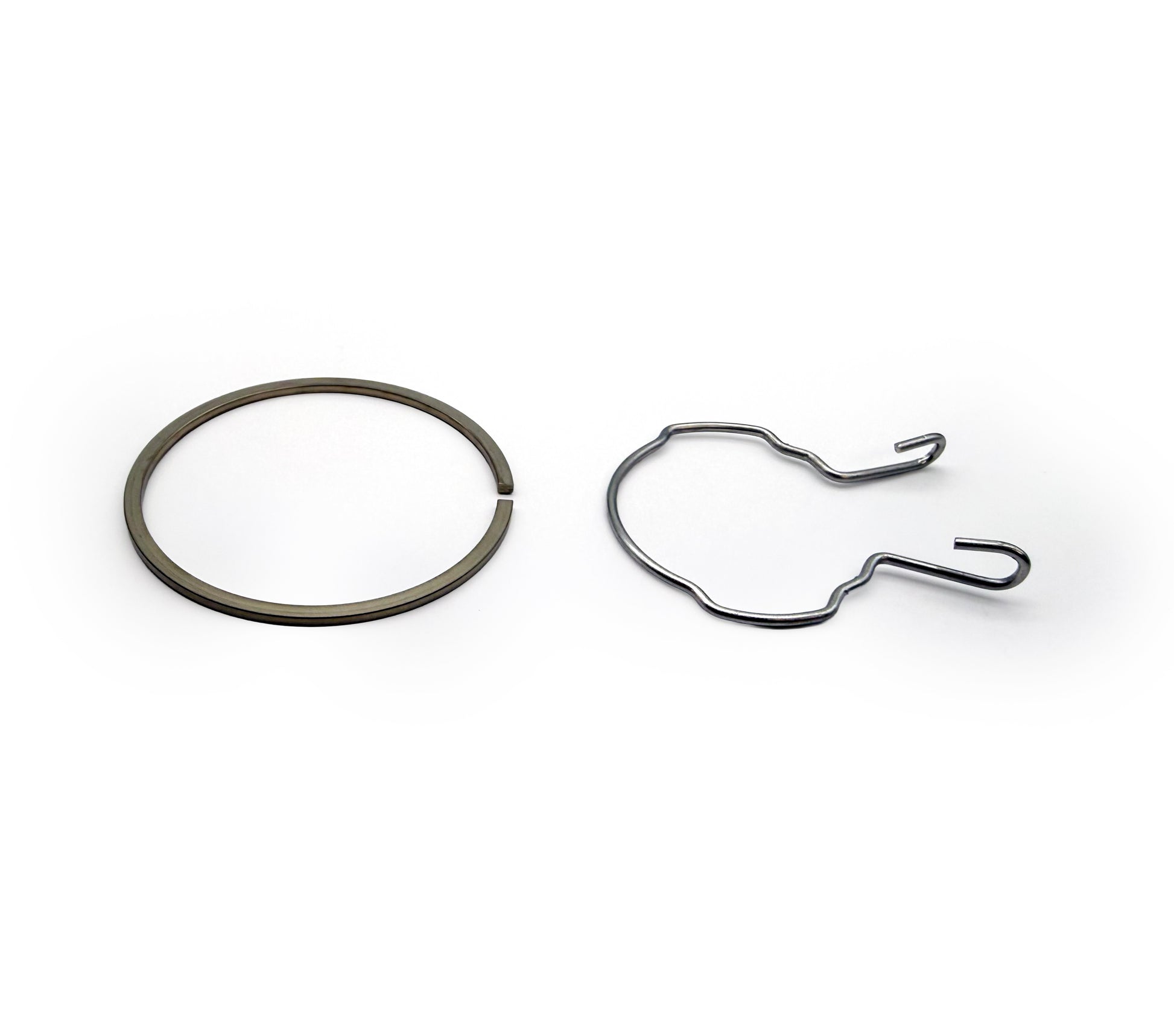

Kit Includes: Sleeve, Upper Cup, Lower Cup, Locking Nut, O-Ring, and Snap Ring.

Debris Prevention - Holes allow trapped dirt, mud, and debris to clear out, preventing common seating issues associated with standard cup designs.

SECURE MOUNTING & LOCKING MECHANISM

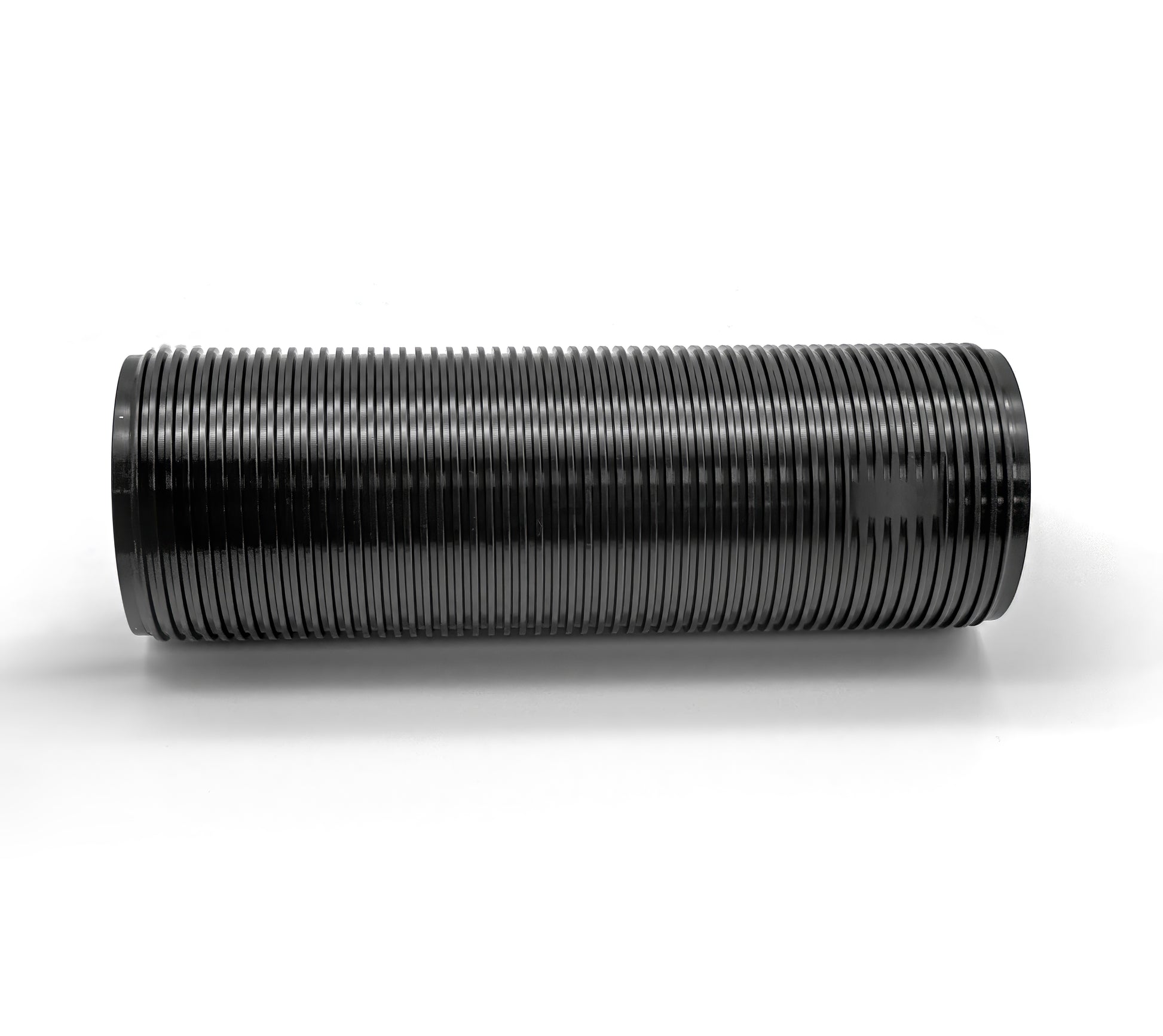

Shock Body Integration - The threaded sleeve features distinct machined steps designed to securely lock onto the snap-ring groove of a steel-body shock, trapping the snap ring more effectively.

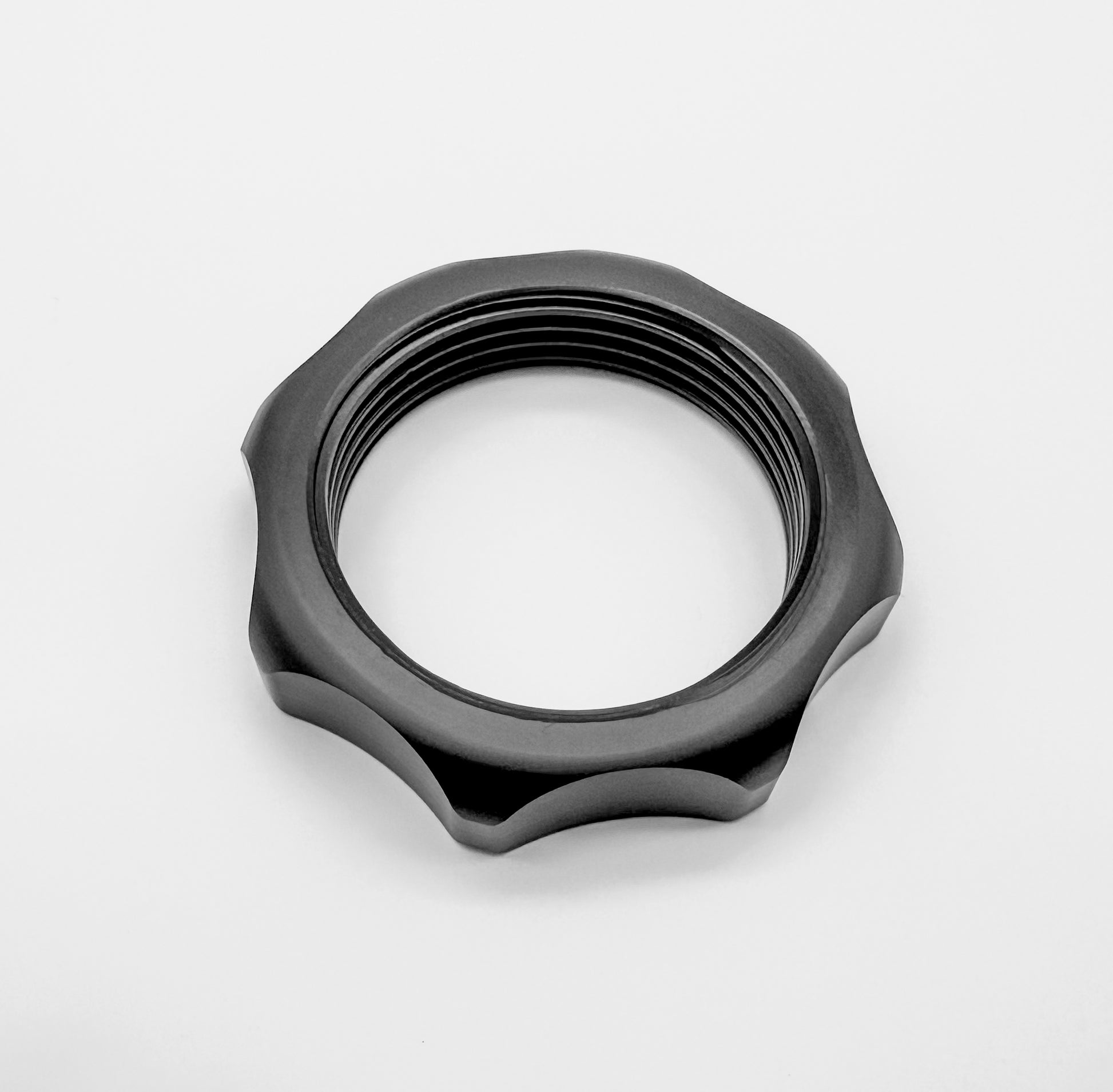

Positive Ride-Height Locking: Once ride height is set, the locking nut securely locks the adjuster in place while the O-ring helps prevent movement caused by vibration and track conditions.

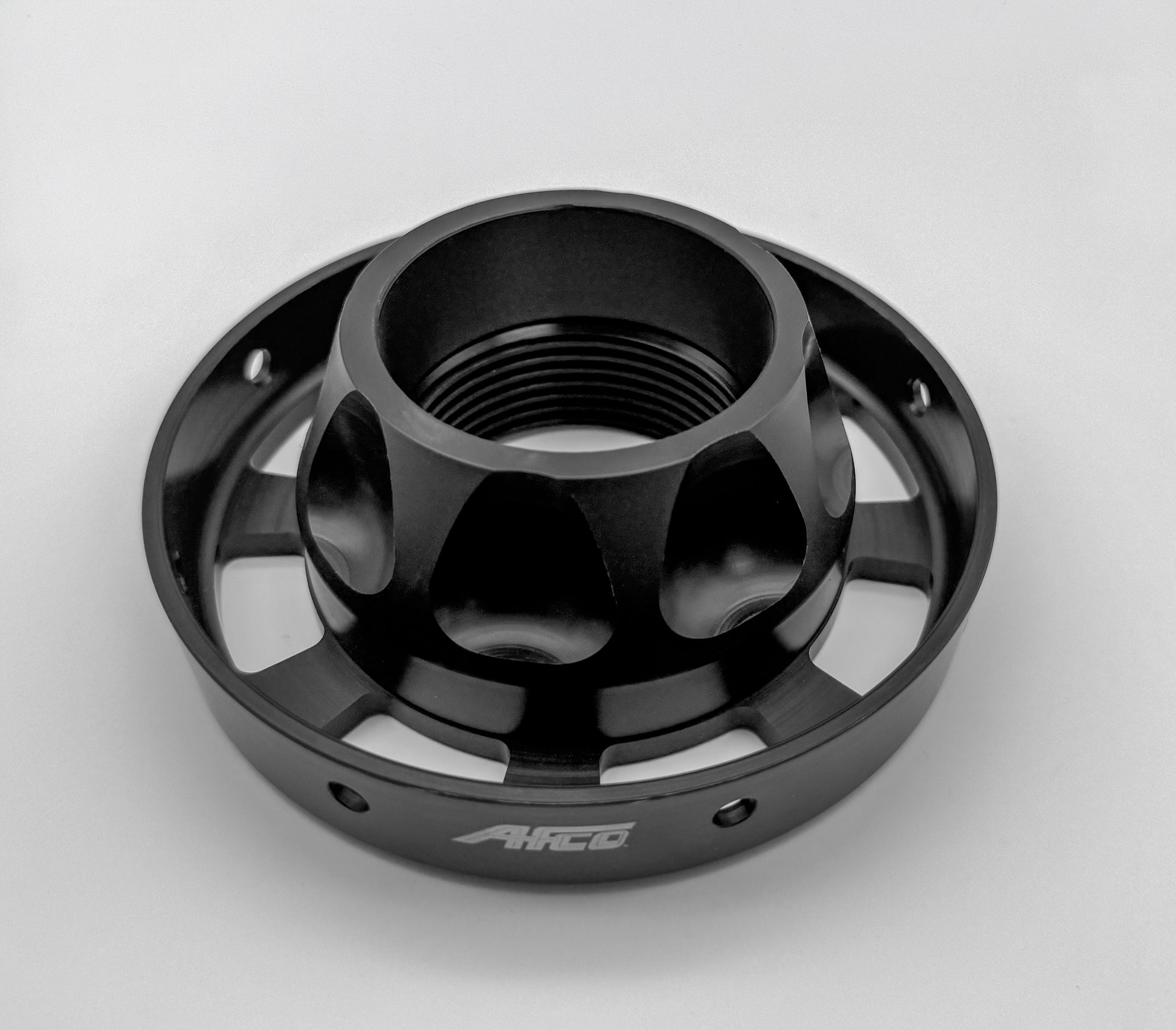

OD-GRIP DESIGN & SPRING ALIGNMENT

Allows for the top and bottom cups to eliminate spring bow, stabilizes the spring rate, and improves driver feedback.

Polymer Internal Guide – Keeps the spring centered and automatically guides it back into its proper seated position if it becomes unseated during suspension travel.
